Tronic Dual Thermostat
Original price was: Sh 49,000.Sh 44,000Current price is: Sh 44,000.Save Sh 5,000
In stock
Estimated delivery: Saturday, Jul 19th - Monday, Jul 21st
- Sold by Authorized Distributor
- Fulfilled by Wilson Nzuchi Company
- Free Delivery for Orders Over TSh 199,000
- Easy Returns & Exchages, T&C Apply
Shop with confidence
100% secure payments guaranteed by Vodacom M-PESA
100% secure payments guaranteed by Vodacom M-PESA
About the item
Specifications
Warranty Policy
Return Policy
Reviews (0)
Description

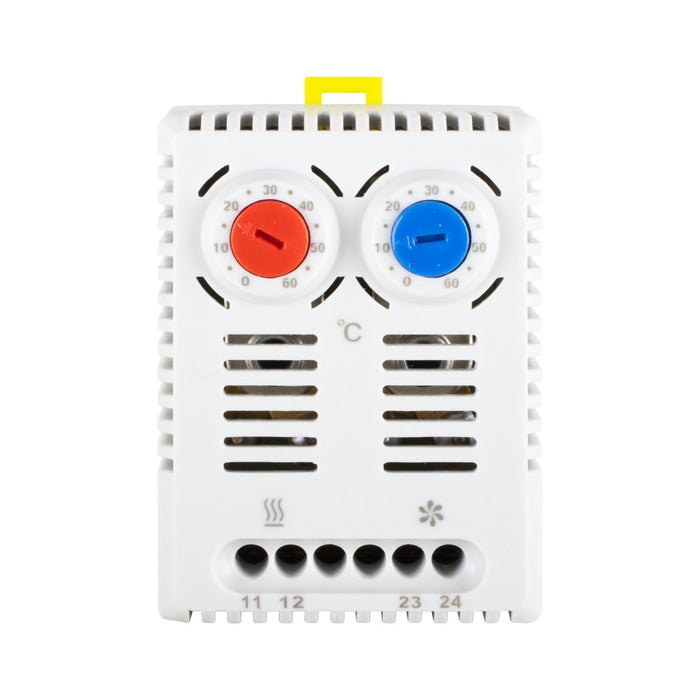

Two thermostats in one casing:
Thermostat (contact breaker, normally closed) for regulating heaters. The contact opens when temperature is rising. Thermostat (contact maker, normally open) for regulating filter fans and heat exchanges or switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising. Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.
- NO and NC in one casing

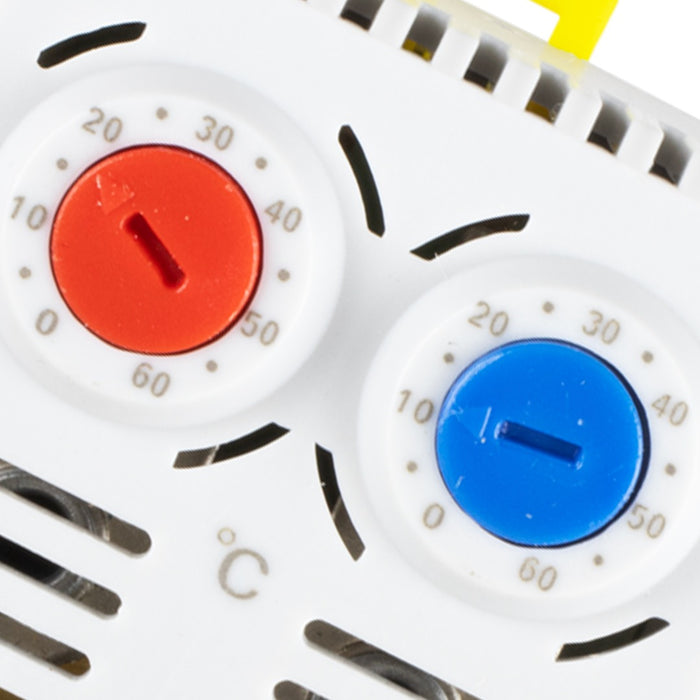

- Separate adjustable temperatures
- High Switching Capacity
- Terminals easily accessible
- Clip fixing
| Additional Information |
| Operating Voltage | All AC / DC Voltage |
| Switch temperature difference | +/-5°C |
| Sensor element | Thermostatic bi-metal |
| Contact type | snap-action contact |
| Service life | >100,000 cycles |
| Max. switching capacity | 250VAC, 10 (2) A |
| Max. inrush current | AC 16A for 10 sec |
| Connection | 4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14) stranded wire¹ 1.5mm² (AWG 16) |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 67×50×46mm |
| Weight | approx. 90g |
| Fitting position | variable |
| Operating/Storage temperature | -45 to +80°C (-49 to +176°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type | IP20 |
When connecting with wires, wire end ferrules must be used. Important note: The contact system of the regulator is subjected to environmental inuences, thus the contact resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.
